Guided wave radar level transmitter

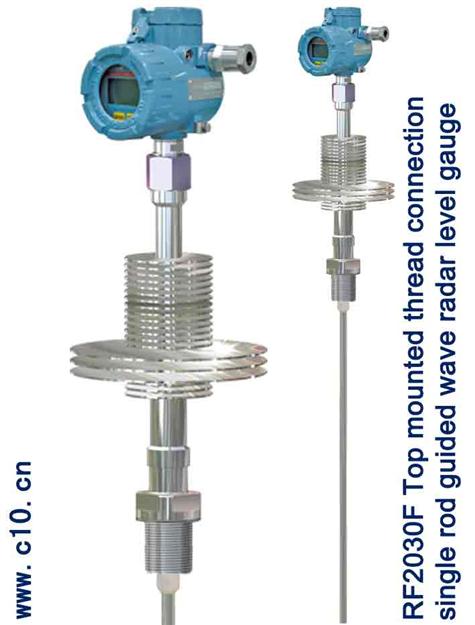

◆ Model:RF2030F
◆ Parameters:RF2030F、、、、

View product specs

Product Overview

RF2030 high temperature high pressure guided wave radar level transmitter is specially designed by USA FOX INSTURMENTS for high temperature high pressure service conditions. The product is as per ANSI B31.1 Standard, mainly applied to liquid level measure on the boiler steam drum, with high security and accuracy, highest rated pressure is 32Mpa, highest rated temperature is 520. It can be applied for middle-high or low pressure heater, condenser and deaerator in Coal-fired Power Plant and other liquid level measuring in high temperature high pressure or vacuum steam working conditions.



Conventional measure applied balance container, DP transmitter and temperature compensation method. Due to the indirect measure, DP transmitter may have many factors affecting accuracy under high static pressure and short range conditions, especially at start-up or load fluctuation, the whole measuring unit can’t work or measure value incorrect. While this guided wave radar level gauge can totally solve the above problems, guided wave bar not affect by steam condensation water and keep the accuracy about 0.1%FS all the time; As the mature application of guided wave technology in high temperature high pressure steam level measurement with its outstanding characteristics like accuracy, stability and long lifetime etc, this advanced technology is now replacing the traditional measurement technology.



Structure Principle

Order Information

RF2030

High temperature high pressure guided wave radar level transmitter

Model No



A

side-side mounted external displacer type

Basic type

E

double flange mounted external displacer type

C

single probe flange top mounted

F

single probe thread top mounted


C

Carbon steel 20#

Tube MaterialProbe 316L

H

304

M

316L

T

Cr-Mo Alloy

P

321

N

To be specified


1

DN20(3/4‘’

  Nominal

diameter

2

DN251''

3

DN4011/2''

4

DN502''

5

DN652.5''

6

DN803''


0

PN 2.5Mpa

Rated pressure

1

PN 5.0Mpa

2

PN 6.4Mpa

3

PN 10Mpa

4

PN 16Mpa

5

PN 32Mpa

6

Class 150LB ANSI

7

Class 300LB ANSI

8

Class 400LB ANSI

9

Class 600LB ANSI

10

Class 900LB ANSI

11

Class 1500LB ANSI


D

 -50℃~204

Rated temperature

H

 -50℃~427

M

 -50℃~520


D

Explosion-proof: ExdIICT2T6

Safety class

E

 Intrinsic safe:ExiaIICT2T6
  □□□

Measure span (mm)
