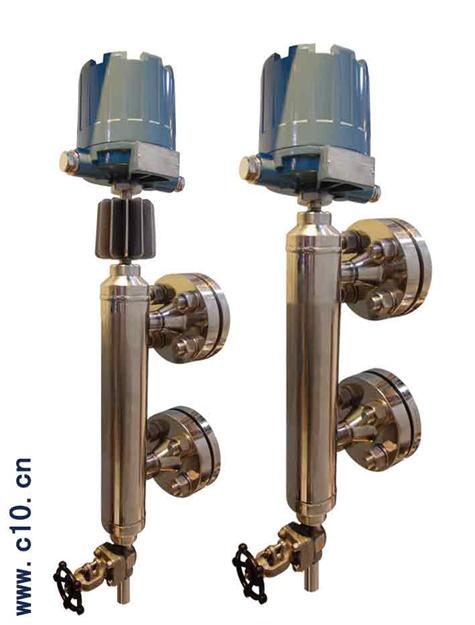

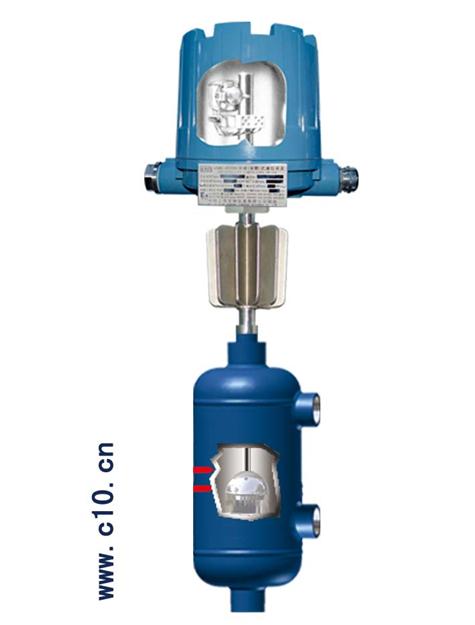

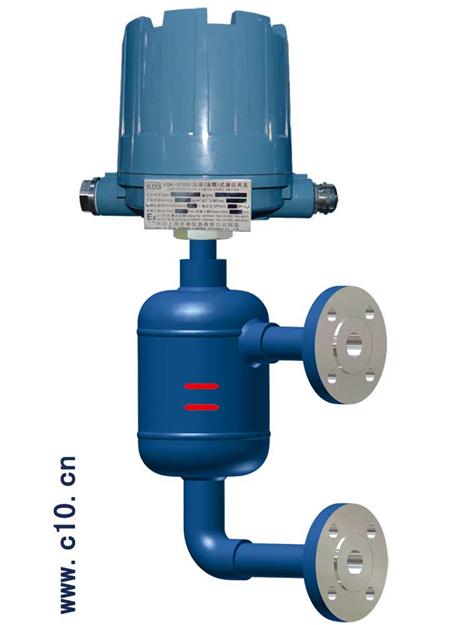

UQK6100 float level switch are designed as per ANSI B 31.1 standard for high temperature high pressure service conditions. Applied tri-magnet switch, with reasonable structure and strong reliability, the UQK6100 and UQK6200 level switches are applicable for level control, alarm and cascade failure of open vessel, and high temperature high pressure process conditions in the fields of petrochemical, power, food, pharmaceuticals and etc.

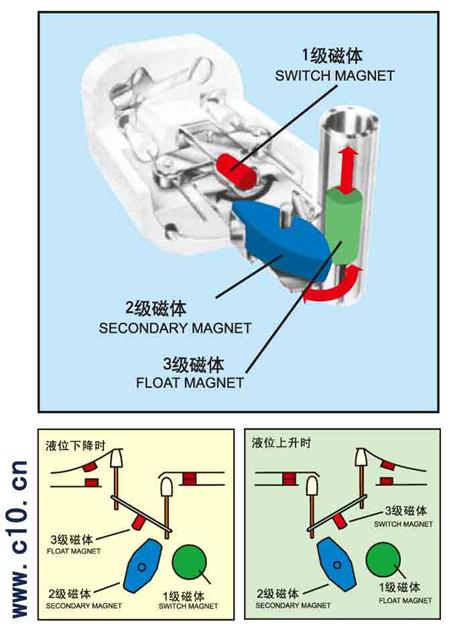

As liquid level changes the float will rise up or fall down and the first magnet located in pressure pipe will move up and down; there is an up or down adjustable switch outside pressure pipe in the housing. As up and down movement of the first magnet, for magnetic coupling effect, the second magnet will be driven to move and the third magnet will follow to be active and then control the switch. The triggered mechanism switch will return to original status when the liquid level decreasing.
Order Information
| UQK6 |
High Temperature High Pressure Float/Displacer Level Switch |
Model No. |
| |
1 |
float level switch |
Switch type |
| 2 |
displacer level switch |
| |
1 |
side-side（socket weld） |

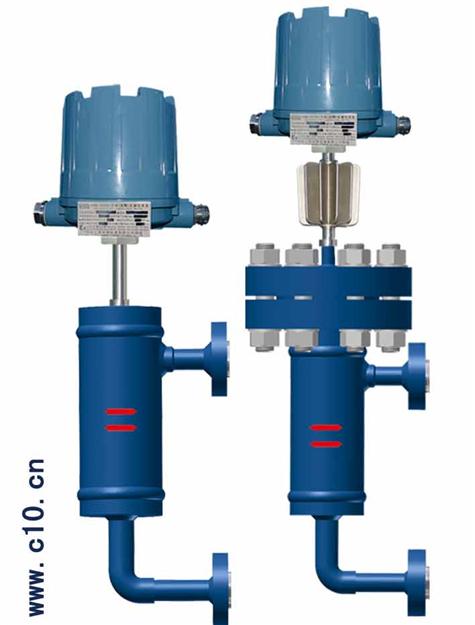

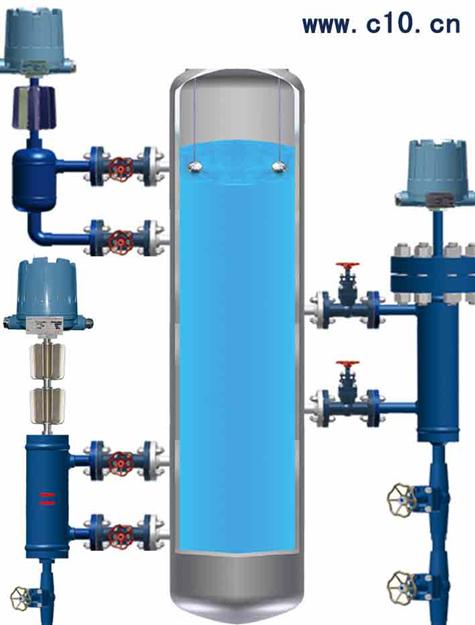

Mounting |
| 2 |
side-side（flange） |
| 3 |
side-bottom（socket weld） |
| 4 |
side-bottom（flange） |
| 5 |
Top mounted |
| 6 |
other type |
| |
0 |
atmosphere pressure ≤0.5MPa |
Pressure rating |
| 1 |
PN 2.5MPa Class 150LB ANSI |
| 3 |
PN 5.0MPa Class 300LB ANSI |
| 4 |
PN 6.4MPa Class 400LB ANSI |
| 6 |
PN 11MPa Class 600LB ANSI |
| 9 |
PN 15MPa Class 900LB ANSI |
| 5 |
PN 26MPa Class 1500LB ANSI |
| 2 |
PN 32MPa Class 2500LB ANSI |
| |
A |
3/4'' DN20 |
conn.size
/nominal diameter |
| B |
1'' DN25 |
| C |
3/2'' DN40 |
| D |
2'' DN50 |
| E |
3'' DN80 |
| F |
4'' DN100 |
| G |
5'' DN125 |
| H |
6'' DN150 |
| |
1 |
NPT or socket weld |
Process
Connection |
| 2 |
Flange RF ANSIB16.5/BS1560 |
| 3 |
consult factory for other flange |
| 4 |
weld short pipe or to be specified |
| |
C1 |
20#、1020、C22、S20C、050A20 |
Material |
| C2 |
CS material specified |
| S1 |
304/0Cr18Ni9、SUS304、304S15 |
| S2 |
321、SUS321、0Cr18Ni10Ti、S32100 |
| S3 |
316、SUS316、0Cr17Ni12Mo2 |
| S4 |
316L、SUS316、0Cr17Ni14Mo2 |
| S5 |
SS material specified |
| |
A |
-46℃～+150℃ |
Temperature
rating |
| B |
-46℃～+260℃ |
| C |
-46℃～+370℃ |
| D |
-46℃～+420℃ |
| E |
-46℃～+538℃ |
| F |
-150℃～+98℃ |
| |
|
No explosion proof requirement; |
Safety rating & options |
| D |
Explosion proof ExdIIBT1～T6 |
| E |
Intrinsic safe ExiaIICT1～T6 |
| M |
Top with flange |
| L |
Bottom with drain valve |
| |
1 |
2*SPDT |
Switch quant. & contact form |
| 2 |
4*SPDT DPDT |
| |
1 |
one switch |
Control points |
| 2 |
two switches |
| 3 |
three switches |
| |
|
Dimension |
| |
|
Medium density |
