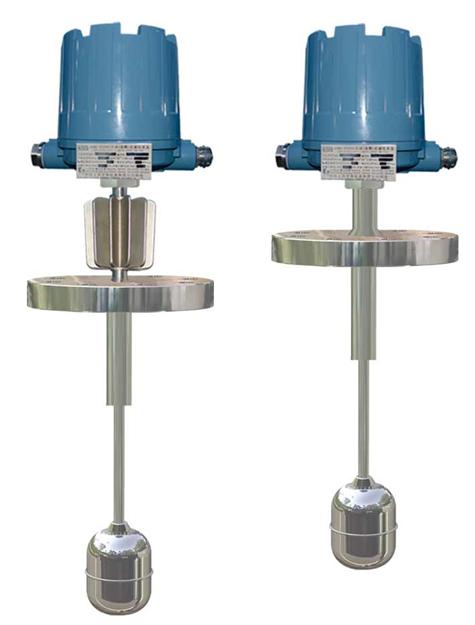

Float level switch

◆ Model:UQK615□
◆ Parameters:UQK615□、、、、

View product specs

Product Overview

UQK6100 float level switches are designed as per ANSI B 31.1 standard for high temperature high pressure service conditions. Applied tri-magnet switch, with reasonable structure and strong reliability, the UQK6100 and UQK6200 level switches are applicable for level control, alarm and cascade failure of open vessel, and high temperature high pressure process conditions in the fields of petrochemical, power, food, pharmaceuticals and etc.



Structure Principle

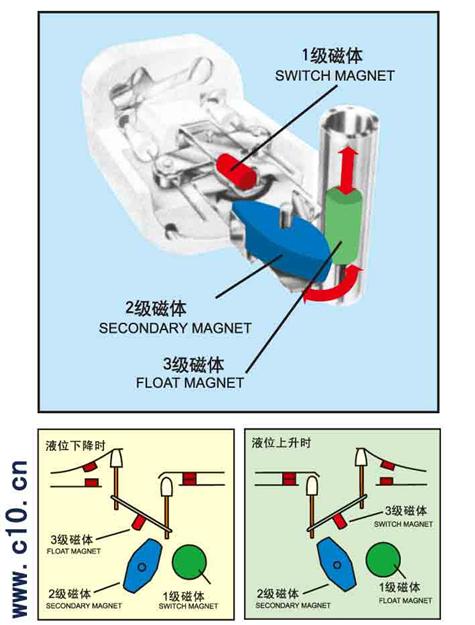

As liquid level changes the float will rise up or fall down and the first magnet located in pressure pipe will move up and down; there is an up or down adjustable switch outside pressure pipe in the housing. As up and down movement of the first magnet, for magnetic coupling effect, the second magnet will be driven to move and the third magnet will follow to be active and then control the switch. The triggered mechanism switch will return to original status when the liquid level decreasing.



Order Information

UQK6 High Temperature High Pressure Float/Displacer Level Switch Model No.
  1 float level switch Switch type

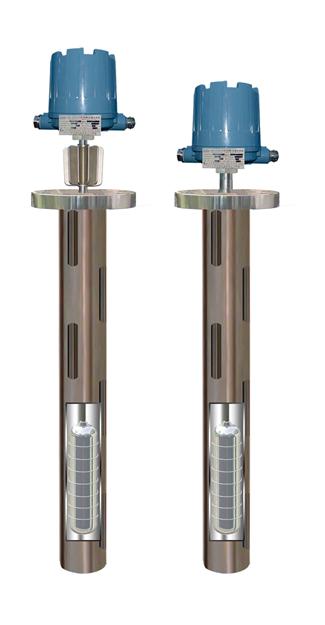

2 displacer level switch
  1 side-sidesocket weld Mounting
2 side-sideflange
3 side-bottomsocket weld
4 side-bottomflange
5 Top mounted
6 other type
  0 atmosphere pressure  0.5MPa Pressure rating
1 PN 2.5MPa Class 150LB ANSI
3 PN 5.0MPa Class 300LB ANSI
4 PN 6.4MPa Class 400LB ANSI
6 PN 11MPa Class 600LB ANSI
9 PN 15MPa Class 900LB ANSI
5 PN 26MPa Class 1500LB ANSI
2 PN 32MPa Class 2500LB ANSI
  A 3/4'' DN20 conn.size
/nominal diameter
B 1''  DN25
C 3/2''  DN40
D 2''  DN50
E 3''  DN80
F 4''  DN100
G 5''  DN125
H 6''  DN150
  1 NPT or socket weld Process
 Connection
2 Flange RF ANSIB16.5/BS1560
3 consult factory for other flange
4 weld short pipe or to be specified
  C1 20#1020C22S20C050A20 Material
C2 CS material specified
S1 304/0Cr18Ni9SUS304304S15
S2 321SUS3210Cr18Ni10TiS32100
S3 316SUS3160Cr17Ni12Mo2
S4 316LSUS3160Cr17Ni14Mo2
S5 SS material specified
  A  -46+150 Temperature
rating
B  -46+260
C  -46+370
D  -46+420
E  -46+538
F  -150+98
    No explosion proof requirement; Safety rating & options
D Explosion proof ExdIIBT1T6
E Intrinsic safe ExiaIICT1T6
M Top with flange
L Bottom with drain valve
  1 2*SPDT  Switch quant.     & contact form
2 4*SPDT DPDT
  1 one switch  Control points
2 two switches
3 three switches
    Dimension
    Medium density
