Magnetic float level transmitter

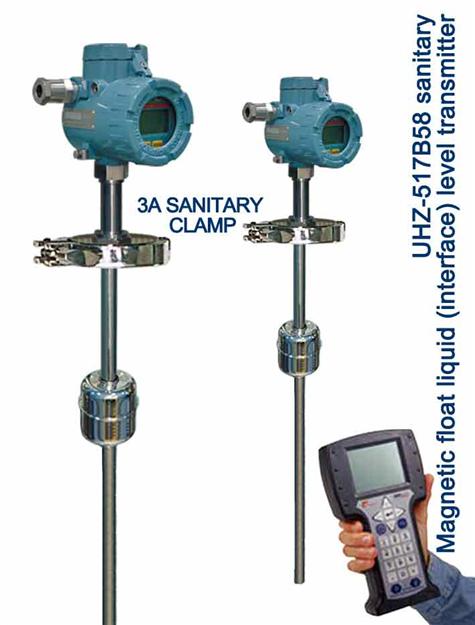

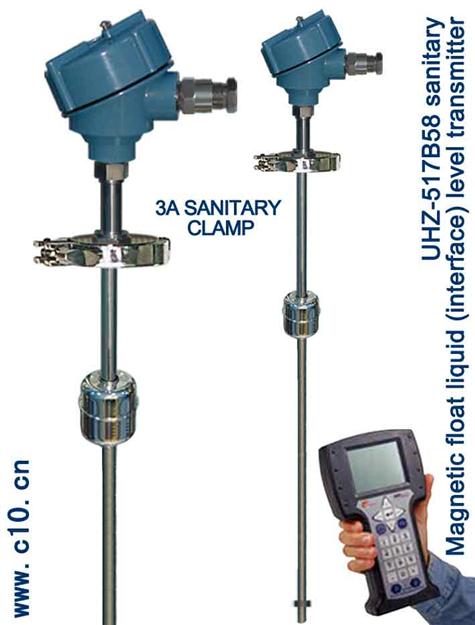

◆ Model:UHZ-517B58
◆ Parameters:UHZ-517B58、Sanitary type 、Wetted material: 316L/Ti、Easy to install、HART optional

View product specs

Product Overview

UHZ-517B magnetic level transmitter can be applied to chemical industry, electric power, paper making, foodstuff, environmental protection and urban construction etc., and used for the level measurement of sewage treatment, ground oil container and high water tank. With two-wire 4-20mA standard signal and local LED digital display.



Structure Principle

There is a dry reed pipe and precision resistor in the checking pipe of transmitter. As the magnetic float outside the pipe move up or down as the liquid level rise or fall, the reed pipes at the level surface are successively closed and the resistance value of sensor changed, then the circuit module in the terminal box converts the resistance value into current output. Resolution range is 5~10mm as per customers’ requirement.



Features

l   Simple structure principle, while extremely wide applications;

l   Continuous measurement, get liquid data reliably without influence of physical or chemical condition of medium, e.g. bubble/foam, conductivity rate, pressure, vacuum, temperature, evaporation and density change.

l   Easy mounting, only necessary to calibrate before use;

l   Remote transmission signal;

l   Good repeatability;

l   Can measure interface, density difference ≥50Kg/m³

l   Temperature range: -80~100

l   Vacuum pressure up to10Kpa

l   Density≥400Kg/m³

l   Strong anti-corrosion ability, applied for various industries: chemical, petrochemical, nature gas, pharmaceuticals, offshore exploration, ship building, power generation, propulsion system, machinery, water purification installation, beverage and food industry.



Order Information

UHZ-517B Magnetic float level(interface) transmitter  Model number
  4A standard type  wetted: 304SS/316L temperature-35120 DN150 PN1.0/4.0 Basic type
4B standard type  wetted :304SS/316L/TI temperature-35120 DN50 PN1.0/4.0
3A anti-corrossive type  wetted: PPR/PP temperature-3580 DN100 PN1.0
3B anti-corrossive mini float type  wetted: PPR/PP temperature-3580 DN50 PN1.0
7 anti-corrossive type  wetted b: PTFE temperature: -35120 DN100 PN1.0/4.0
8 sanitary type   wetted: 316L/Ti temperature-35120 三叶 DN50
9 high viscosity type  wetted: 304SS temperature-35120 DN150 PN1.0/2.5
  O water proof type  Options
D explosion proof : ExdIIBT1T6
E intrinsic safe: ExiaIICT1T6
S field LED display
  S field LED display  Indication
H  digital display with HART
  Measure span (mm)
  Mounting heightmm)
  Medium denstiykg/m³
  D ATM Pressure
rated pressure
