Glass level gauge

◆ Model:UB-F
◆ Parameters:UB-F、transparent & frost proof、、、

View product specs

Product Overview

UB common/high temperature/high pressure /low temperature frost proof glass level gauge can directly indicate liquid level for various industrial vessels. Heat treatment borosilicate glass is used when working temperature below 260;special heat treatment aluminosilicate glass is used when working temperature above 260 and mica coated on the wetted part when medium temperature is 420.

UB big diameter glass liquid level gauge is designed for level measure viscous and non-crystallographic medium in petrochemical device. Wide measure range, big diameter, fast flow, no clogging and no blind area at both ends, it is especially for liquid level measure of flammable, explosive and viscous medium.

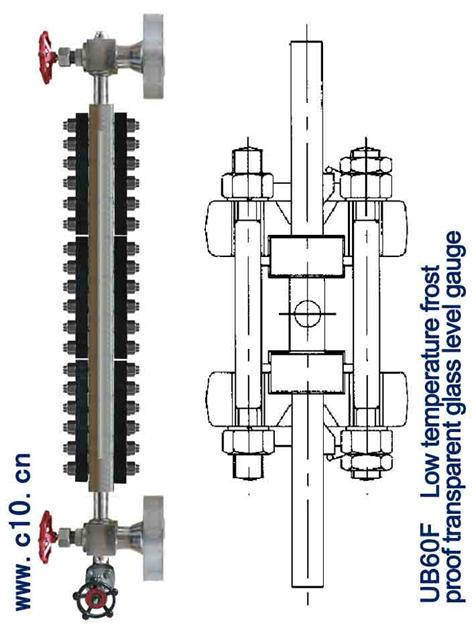

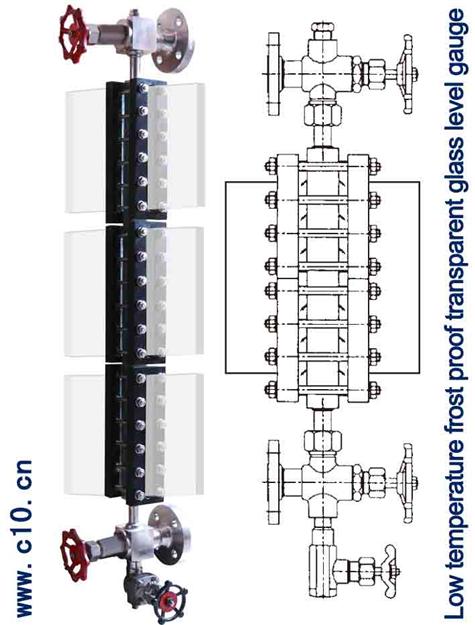

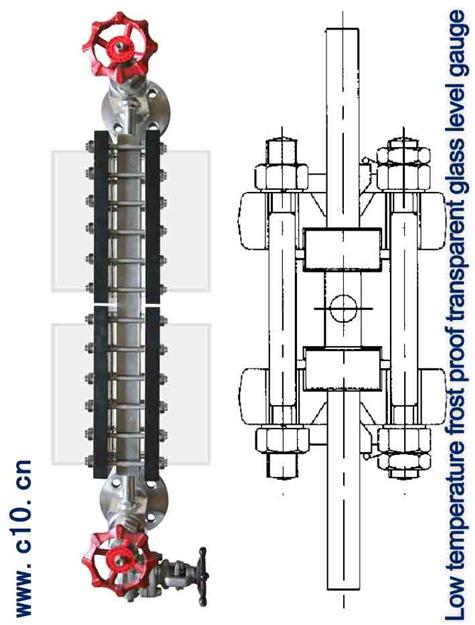

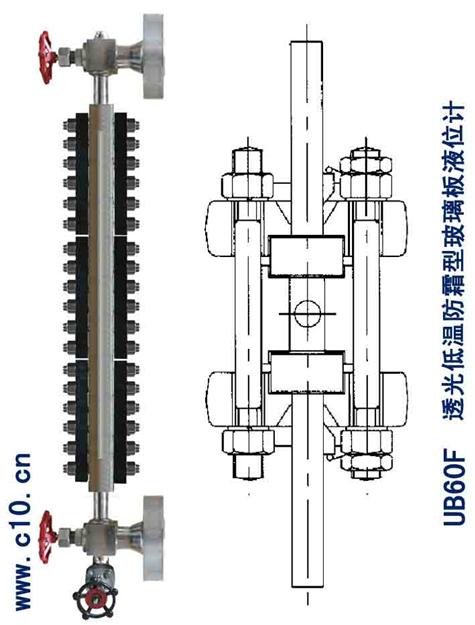

UB low temperature frost proof glass liquid level gauge is designed for low temperature medium; via frost-proof wing, medium level can be clearly observed. It is safe, reliable and endurable.





Structure Principle

UB Common/High temp./High pressure/ low temp. frost proof glass level gauge Model
  25 Class 150LB ANSI       PN2.5Mpa Pressure
 rating
60 Class 300LB ANSI       PN6.4Mpa
100 Class 600LB ANSI        PN10.0Mpa
160 Class 900LB ANSI        PN16.0Mpa
  A transparent, for colorless and transparent liquid in good light condition Basic
 type
B transparent with heating jacket, for cold place or liquid need to be heated condition
C reflex, for colored liquid in good light condition
D reflex, with heating jacket, for cold place or liquid need to be heated conditions
E bicolor transparent  (Not recommended)
F transparent low temp. frost proof, for low temperature, colorless liquid in good light condition
G reflex low temp. frost proof, for low temperature, colored liquid in good light condition
M big diameter type, for colorless liquid, sensitive indication, rated pressure≤4.0Mpa
  1 high borosilicate glass,T≤260℃ Temperature and glass
2 high borosilicate glass, wetted part with mica
3 aluminosilicate glass,260℃≤T≤450℃
4 aluminosilicate glass,wetted part with mica
  3 Q235-A CS 5 321 Wetted material
4 304 6 316L
  TB top-bottom  mounted (std.) Mounting
SL side-side left mounted
SR side-side right mounted
EL side-side ring pipe left mounted
ER side-side ring pipe right mounted
    C-C mm)
