As level varies directly with the capacitance caused by probe, with temperature compensation in measure system and special operation processing software, the measured capacitance outputs 4~20mA analog signal and RS-485 communication serial interface.

Features

l   SCM intelligent design and no limitation of measure range

l   Calibration between 0.2~20m, easer calibration procedure

l   With universal feature and interchangeability, simple two-keys calibration

l   With status and fault indication and analysis function

l   PTFE probe of good corrosion resistance, applicable for acid, alkali and other corrosive liquids

l   Two wire 4~20mA output, LED loop power field display.

l   Auto temperature compensation of measure system

l   Optional medium temperature compensation module

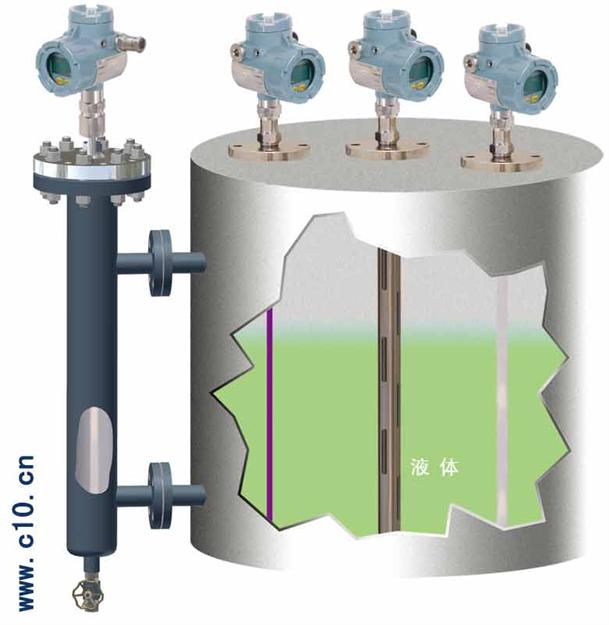

l   Continuous liquid level, material level and interface level

l   Modularization design, flexible extended functions, high interchangeability

l   Perfect linearization measure, much smaller resolution measuring unit

l   Superior technology, strong stability and reliability, high pressure and strong anticorrosion ability

l   With self diagnosis

Order Information
