Pressure/DP transmitter
◆ Model：IGP10
◆ Parameters：Direct mounted 、High stability 、Easy process connection 、With HART Protocol 、High Accuracy
Product Overview

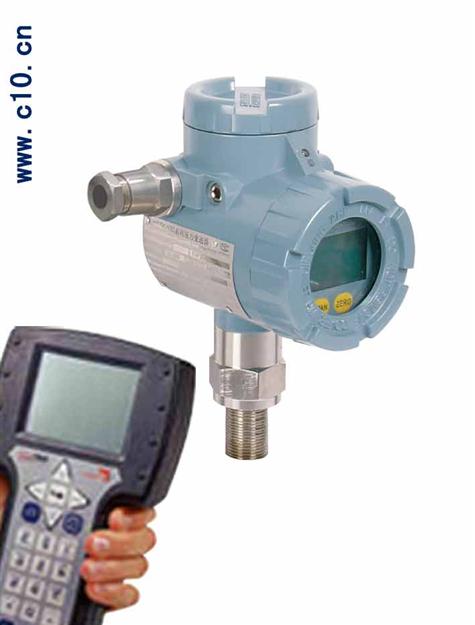

IGP/IAP/IDP industrial pressure transmitter employs the high accuracy and stability FOX sensor assembly and intelligent electronic module, convert the gauge pressure or absolute pressure of measured medium to two wire 4~20mA standard output signal with HART communication.
IGP10 is recommended for gauge pressure measure and IAP10 for absolute pressure measure. The advantages of this transmitter, such as mini in size, light in weight, good performance in wide range measure, direct mounting method, make it to be a very applicable and efficient instrument for process pressure measure. As per different pressure range or process temperature, different measure range pressure transmitter shall be chosen.
Easy process connection, standard type is M20*1.5 or 1/2’’NPT thread mounting, and other connection size is available.

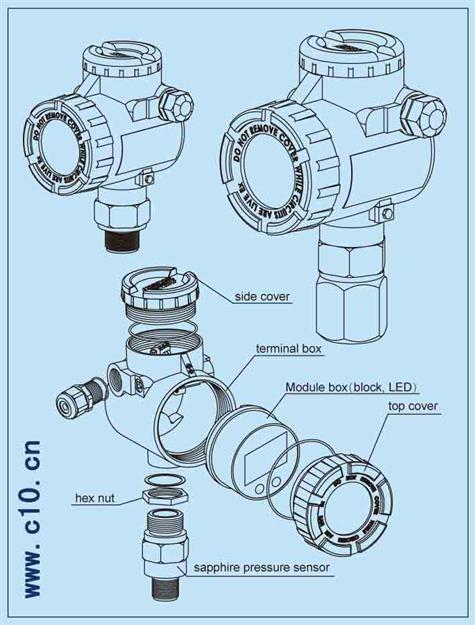

Structure Principle
Model Table
| IGP10/IAP10 |
Industrial pressure transmitter |
Model |
| |
A |
common type, two wire 4-20mADC |
Electronic module |
| T |
intelligent type, two wire 4-20mADC，HART communication |
| F |
intelligent type, FF output, FF communication |
| |
1 |
To be specified |
Measure range |
| 2 |
0-0.1～1kPa |
| 3 |
0-1～6kPa |
| 4 |
0-1～40kPa |
| 5 |
0-40～250kPa |
| 6 |
0-0.16～1MPa |
| 7 |
0-0.4～2.5MPa |
| 8 |
0-1.6～10MPa |
| 9 |
0-4～25MPa |
| 0 |
0-6～40MPa |
| |
1 |
0～80℃ |
Process temperature |
| 2 |

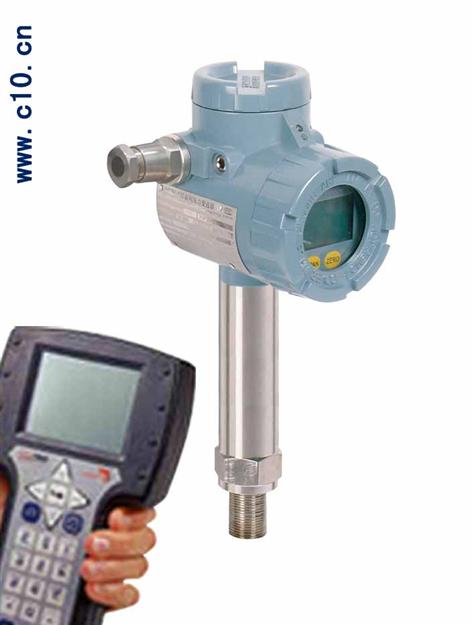

-60～150℃ |
| 3 |
0～350℃ |
| |
O |
common type |
Safety rating |
| D |
explosion proof: ExdIIBT4-T6 |
| E |
intrinsic type: ExiaCT4-T6 |
| |
M |
M20×1.5 external thread (regular type) |
Process connetion |
| G |
M20×1.5 internal thread |
| L |
G1/2'' external thread |
| K |
G1/2'' internal thread |
| S |
Stop valve and drain valve |
| N |
1/2''NPT internal thread |
| X |
1/2''NPT external thread |
| Y |

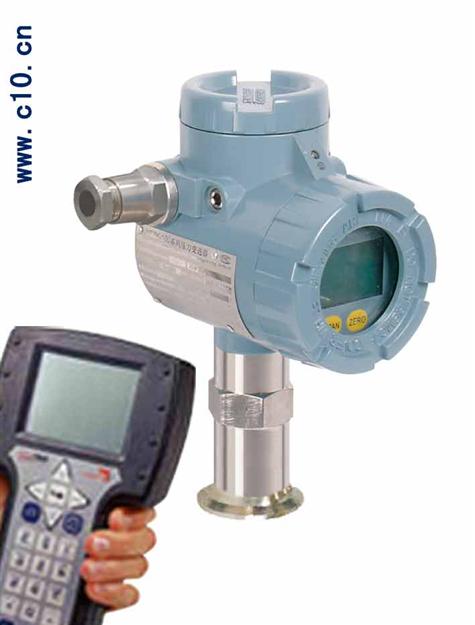

sanitary type，as per GMP standard and 3A standard DN20/25/32/50 |
| |
□ |
Factory range （kPa/MPa） |
|
